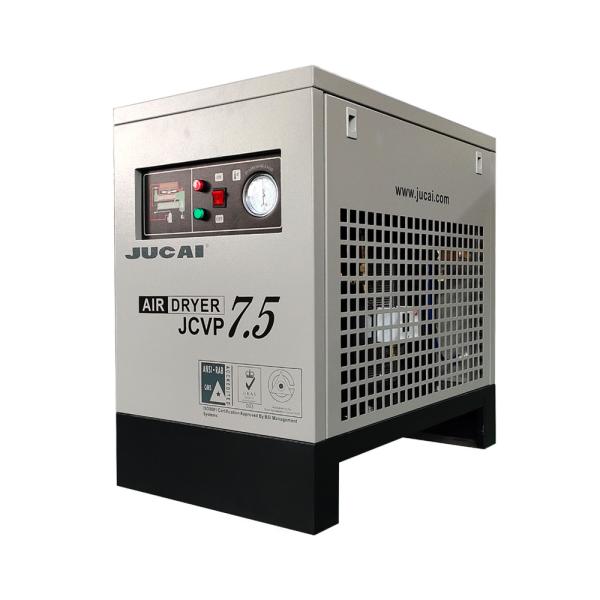

220v industrial air dryer electric refrigerated air compressed dryer for compressor Energy saving air dryer
Condition:New, New
After Warranty Service: Online support
Place of Origin: Huizhou ,Guangdong
Type:PISTON
Configuration:Portable
Lubrication Style:Lubricated
Mute:Low noise
Warranty: 1 years
After-sales Service Provided:Online support
Working Pressure:8 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components:1 years
Feature: Easy Operation
Keywords:Air compressor head
Color:Silver

Dimension:W38 x D53 x H47 cm
Weight:33KG

AIR-COOLED FREEZING DRIER

High Eff. Cooling Drying Technology

JUCAI refrigerated drier series is adopted advanced technology
and by high-quality components according to the quality standard
for air compression (ISO8373.1) made by ISO. The dying equipment
made by us has high performances such as high efficiency, reliability,
environmentally friendly, energy saving and visual display.

Operation Principle And Flow

The moist air flows through filter net and enters into the vaporizer,
then reaches dew point temperature after being refrigerated quickly,
and the water is coagulated as water drops by the vaporizer which
drop down into water basin along and discharged automatically
through the drainage pipe. the cooling air dried momentarily is
improved temperature by the heat of condensator and blown out by
the blower. It will run according to the setting moisture and can drive
moisture with high efficiency for long time.

Features Of JUCAI Refrigerated Dryer

> Special rear cooler and precooler can accept the high temperature
compressed air lower than 80℃ directly.

> The specially designed centrifugal and collecting type dual water
separator can separate water with the efficiency higher than 99%

> It is adopted the World-class components, so has high quality
and long service life.

> Convenient to use, no expendable, fully automatic drainage,
low operation cost, reliable and continuous run.

Maintenance-free drain aystem the automatic drain

system is no need to person daily maintence.
Stainless mesh filter inside of system is to

prevent the pluggingof electric drainage.

All products designed for full timeoperations and

considered for high air temperature from compressor
(high air temp. 80℃ can be inputdirectly) Combined after

cooler provide to high heat exchange
function to protect air dr yer.

Panasonic refrigerant compressor

Copeland refrigerant compressor

Pressure switch

American Parker hot air bypass valve
